A Detailed Introduction

article by Ben Lincoln

This article is intended to give a detailed and (more-or-less) accurate introduction to the world of multispectral photography. If you find yourself getting bored, A Brief Introduction will give you the executive summary version in a few paragraphs.

The Electromagnetic Spectrum is a Big Place

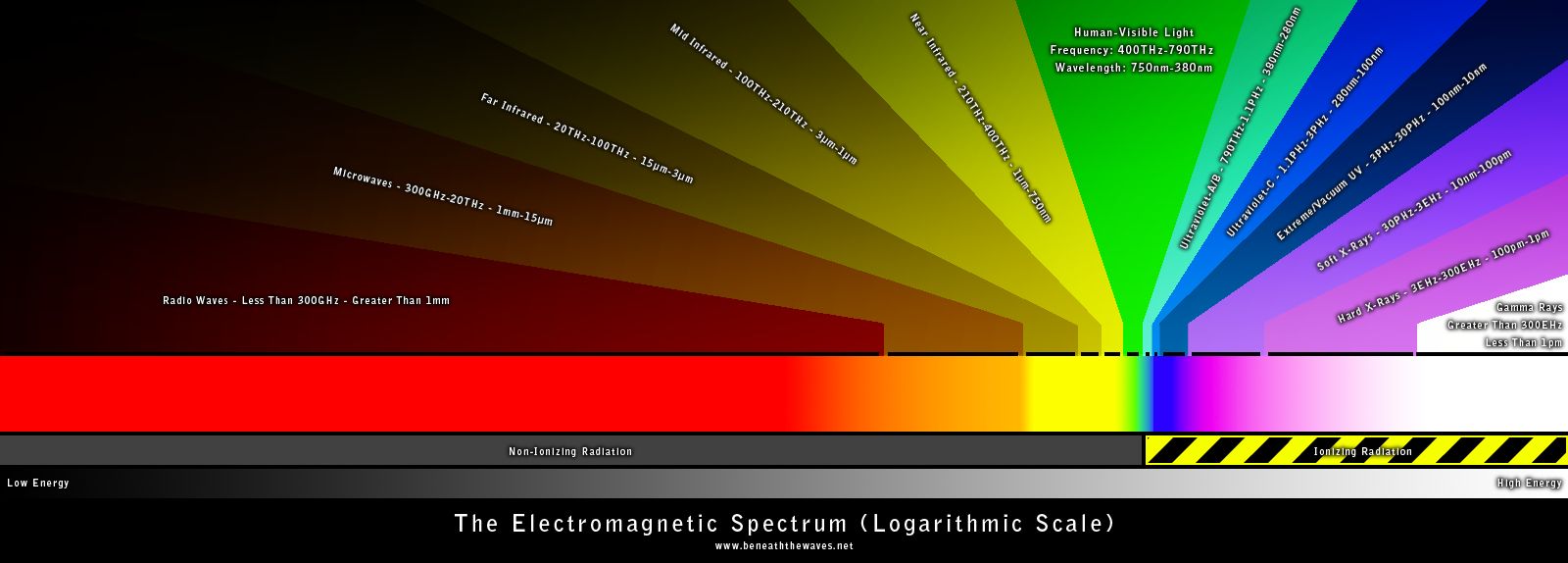

Most people have seen something like the following image^[1] at some point in their schooling:

It represents all of the forms that photons can come in, from radio waves (which extend indefinitely to the left of the chart), to high-energy gamma rays (which extend indefinitely to the right). It's easy to miss the little green vertical stripe that represents the light that we can see with our eyes. Think about that for a moment - every colour you've known since the day you were born - every sunrise, flower, exotic animal, painting, photograph, or film you've ever seen - has been represented by the thin sliver of the spectrum that we call "visible light". Most of these major bands represent a whole world of "colours" of their own, completely invisible to unaided human sight.

Physicists have devised ways to detect, measure, and image every major type of radiation^[2] within this vast domain. Most of them require increasingly-exotic hardware the further away they are from visible light. Radio astronomers use tremendous parabolic dishes to collect very long waves from distant galaxies. Thermal imaging systems focus heat onto specialized detectors using lenses whose glass is completely opaque to human vision. Many of these bands are partially or completely blocked by Earth's atmosphere - even if your eyes were sensitive to X-rays, you would need to be right next to an object to see it in that part of the spectrum, because at farther distances the air itself would appear as an impenetrable fog^[3].

While much of the spectrum is (at least today) beyond the ability of hobbyists and other non-professionals to explore directly, the bands immediately adjacent to visible light have enough similarity that they can be photographed using (sometimes repurposed) consumer equipment. The higher-frequency section of the near infrared^[4] can be imaged with virtually any digital camera after a trivial modification^[5]. Ultraviolet-A is harder to capture, but the sensors in Nikon's digital SLRs are sensitive enough to it that this region too becomes accessible.

However, capturing the raw imagery is only the first step. One of the many challenges faced by scientists and amateurs alike is how best to represent the results given the limitations of our senses.

Flatland for Colours

Flatland is a metaphor used in physics and mathematics^[6] to help explain the concept of hyperdimensional structures (that is, geometry with four or more spatial dimensions^[7]). I will avoid a detailed description here, but highly recommend Dr. Brian Greene's excellent The Elegant Universe because (whether you are skeptical of String Theory or not) among other things it includes a large number of analogies and metaphors useful in understanding some of the less-intuitive aspects of physics^[8].

The general idea is to imagine how the inhabitants of a two-dimensional world would experience the interaction with that world by a three-dimensional shape or being, because the same sort of bizarre effects would apply to a four-dimensional object or being interacting with our own three-dimensional world. For example, just as you can see what's inside a circle drawn on a piece of paper when you look down from above on that two-dimensional plane, a four-dimensional being could see everything that's inside your body by looking at you from the corresponding vantage point "above" you in a higher dimension. Such a being could also "pick you up", rotate you 180 degrees along a hyperdimensional axis, then "set you down", with the result being that every atom in your body would have its position flipped as if in a mirror image.

However, for purposes of this discussion, the most important aspect of Flatland is with regards to the perception of higher-dimensional shapes. Just as a two-dimensional creature can only ever perceive a four-sided, two-dimensional slice of a cube, three-dimensional creatures like us cannot see the entirety of a four-dimensional object such as a tesseract (a 4D "hypercube"). The best we can do is to represent it using three-dimensional slices or shadows cast from the more-complex original.

This is important because a similar limitation exists when we move beyond the familiar red, green, and blue primary colours of light in the visible spectrum^[9].

Here is a photo I took of the artificial rainbow created by the DIY punk version of Sir Isaac Newton's famous prism experiment^[10]. The black electrical tape Xs are registration marks (used to align multiple elements in a composite image), and will come in handy a little later. The spectrum is a bit messy vertically because instead of a precise vertical slit, the white source light (a 500W halogen worklight) was passed through a gash cut in aluminum foil before being focused onto the prism by the magnifying glass of a "helping hands" apparatus from my electronics workbench. The result is functionally the same as Isaac Newton's for what is being described here.

In addition to the familiar colour image, I've included the three individual primary colour components (red, green, and blue), represented as greyscale images.

Similarly to the Flatland metaphor, imagine a person who sees the world in "black and white". They can tell how much visible light something is emitting or reflecting, but not distinguish between the colours of the rainbow. As long as they have a theoretical knowledge of concepts like "yellow" (an equal mixture of red and green light) and "cyan" (an equal mixture of green and blue light), they can compare these versions to determine that the image represents a rainbow, even if they can't see the rainbow in its entirety as a single photograph.

Here's a real-world example of the same concept:

By examining the three greyscale images, someone without colour vision can note that the flowers on the right equally reflect red, green, and blue light, so they have the property of being "white". The flowers on the left reflect medium amounts of red and blue light, but do not reflect green light at all (they are completely dark in the Green image), so they have the property of being "dark purple" (again, even though for this person "purple" is an abstract concept).

Now imagine a person who is red-green colourblind. Like about 6% of men, this person sees only two primary colours: they cannot distinguish between red and green light, even though neither are "invisible" to them in the sense that radio waves are invisible to all human eyes. However, they can perceive the difference between blue and the combined red and/or green light. In most situations, this is not as severe a limitation as those of us without colourblindness might first expect. The first image in this next sequence depicts the petunias in a way that simulates red-green colourblindness. Don't worry about the three-component naming scheme ("RG-RG-B") yet if it doesn't make sense. That will be explained later in this article.

The second and third image in the above sequence illustrate how for someone who sees two primary colours, two images are sufficient to make a distinction between the red, green, and blue components of a photograph instead of the three that are necessary for greyscale. The "R-R-B" image allows such a person to determine that the flowers on the left reflect both red and blue light. The "G-G-B" image shows them that the flowers on the left do not reflect any green light (as well as reinforcing the blue-light reflectivity), so the flowers must be purple, even though to their unaided eyes they appear as a sort of greyish-blue. However, there is a third possible variation ("R-R-G") which discards blue entirely to allow a direct comparison between red and green levels, and in this case this final variation provides the most obvious visual contrast.

A Wider Spectrum and False Colour

Consider now a camera that can photograph not only red, green, and blue, but also near infrared and ultraviolet-A, giving a total of five primary colours to work with^[11]. The camera I use can't capture all five bands at once, so the registration marks mentioned previously are there to allow multiple exposures shot from a tripod to be lined up correctly in post-processing. In less-contrived photographs the subjects in the picture would serve the same purpose.

The "full spectrum" image in this set is not very useful, because (as noted above), it doesn't provide the viewer with enough information to determine if the white areas represent near infrared, ultraviolet-A, or an equal mixture of red, green, and blue light. Our eyes only have receptors for three primary colours (at most)^[12], so there is nothing left to assign to represent the two additional bands.

There are two main approaches taken here. Many scientists prefer the purity of the discrete greyscale images. There is certainly no ambiguity when viewing them - if an object is bright in the image that represents red light, there can be no confusion as to whether it reflects (or produces) red light.

On the other hand, greyscale images do not make use of the much greater "information bandwidth" that the three primary colour "channels" of our eyes can provide. This is where "false colour" comes into play. "False colour" is generally accepted to mean any image which uses colour to represent something other than what would be perceived by an unaided human eye, and comes in many forms. One of the most common is to pick three bands of the spectrum, and "map" them to red, green, and blue, in order of ascending frequency (corresponding to the relative positions of actual red, green, and blue light on the electromagnetic spectrum). If astronomers at NASA have obtained images of a stellar object using radio waves, far infrared, and X-rays, they will typically use red to represent the radio waves, green to represent far infrared, and blue to represent X-rays. If another object is imaged using microwaves, X-rays, and gamma rays, then (again, typically) red will represent microwaves, green will represent X-rays, and blue will represent gamma rays. There is no "right" or "wrong" way to assign these colours, it is simply that this is considered the most intuitive way to represent the data while maximizing the amount of information conveyed by a single image^[13].

This is the main system I use in my own work, and just as everyone typically refers to "RGB colour", I will indicate which bands are represented using a three-component system where the first is used as the red channel, the second is used as the green channel, and the third is used as the blue channel. For example, "NIR-R-G" indicates that the red channel represents the near infrared version of an image, the green channel represents what humans would see as red, and the blue channel represents what we would see as green. "G-B-UVA" indicates that the red channel represents green light, the green channel represents blue light, and the blue channel represents ultraviolet-A light.

At this time, you may begin to think "that makes sense, but what happened to the blue light in the first image, and red light in the second?" Just like the colourblind people in the examples above, by bringing new spectral bands into the image, it is necessary to eliminate other information when translating multispectral data into a three-primary-colour image - there is a zero-sum result. In the two preceeding examples, the image was "shifted" in one direction or the other along the spectrum, with e.g. near infrared being shifted in but blue light being shifted out in exchange.

This sort of "shift" is not the only variation on this particular method. For example, the green and blue channels can be left alone but the red channel used for near infrared, resulting in an "NIR-G-B" image (using my naming convention). Spectral bands can be combined as well - I will commonly provide a variation in which the green channel represents the average of the entire human-visible part of the spectrum, with the red channel used for near infrared and the blue channel used for ultraviolet-A ("NIR-RGB-UVA"). However, this still represents a tradeoff, in that such an image alone cannot be used to distinguish between what humans would perceive as red, green, and blue light, only that one or more of them were present in the areas which are bright in the green channel.

Here is a set of false colour images which depict the artificial rainbow using all of the variations I will commonly include for multispectral photos^[14], as well as one that I usually don't (1000nm-880nm-720nm^[15]):

To make comparisons easier, I've created an image that combines the same "stripe" of each variation into a single image:

As you can see, each of these variations depicts a difference that another cannot. Typically only a handful of them will be the most artistically pleasing (although which handful depends greatly on the subject matter), but I will generally include all of the variations for those who are curious.

How does this play out in a real-world image?

As you can see, even for this unremarkable shot of someone's flower bed, false colour multispectral photography throws open a wide window to a world beyond the one we see directly. Note in particular the patterns that become visible on the flowers when peeking into the ultraviolet - most flowers exhibit this phenomenon to one degree or another (Bjørn Rørslett's site has a huge section dedicated to this topic), because bees and other pollinators see green, blue, and ultraviolet light, and so flowering plants have evolved patterns to attract them.

Five distinct colour channels only require a minimum of two false colour images of this type to provide all of the "raw data" (for example, NIR-R-G and G-B-UVA, and this even leaves room for a sixth channel due to the redundant representation of green), but as with the colourblindness simulation above, it soon becomes clear that certain variations provide better visual contrast depending on what is being photographed.

Beyond these variations, I will usually include at least tinted greyscale versions of the near infrared and ultraviolet-A versions of an image. If the result is interesting enough, I may also create a tinted greyscale version of the visible-light image. I tend to like tinted greyscale as opposed to straight greyscale for three main reasons: first, while I love photographic prints of greyscale images, they usually seem flat and lifeless to me on a computer monitor (although there are certainly exceptions). Second, I find that a tinted image provides better contrast to my eyes. Finally, it provides a way to quickly distinguish which band the image represents, even in thumbnail form. In order to retain this second aspect, I will consistently use the same general tinting tones for each major spectral band. Near infrared is almost always a very faint purplish-grey (based on the way it appears uncorrected when taken with my camera using a longer-wavelength filter such as the B&W 093) or reddish-orange (based on the way it appears uncorrected when shot with a shorter-wavelength filter such as the Hoya R72). Ultraviolet-A is generally a more intense shade of purple or pink (based on the way it appears regardless of which filters are used), although some of the older UVA images are a Venusian yellow-orange due to the flawed processing method I used initially. On the rare occassions that I include a tinted visible-light image, it is green. As I allude to in the Brief Introduction, these colours have no real relation to the parts of the spectrum that humans can't see, other than that e.g. blue or purple is usually used to represent ultraviolet because it's the closest colour that we can see^[16]. Just because red is next to green on the spectrum doesn't mean those two colours look anything like each other to someone with normal colour vision.

These tinted images (as well as the original visible-light RGB variation) provide the basis for a more abstract false-colour method: using a greyscale image of part of the spectrum as the luminance component of an image, and a tinted (or colour) version of the same image as the colour component. For more on this type of false colour, see the Luminance/Colour Images article, which is in the Technical Information sub-section.

Here is one last set of the petunia photo depicting the tinted and more-abstract versions:

There are many other possibilities for making false colour composite images. In the world of synthetic aperture radar, it is very common to make use of polarimetry - comparing the reflectivity of an area not in terms of different wavelengths, but different polarizations of the same wavelength. This can be done in (and around) the human-visible spectrum using a camera with a polarizing filter, but I have yet to take any example pictures that show the sort of dramatic results that result from radar applications.

If you've made it to the end of this article, congratulations! You know more about multispectral photography than virtually anyone else on Earth. If you'd like to read more, I highly recommend Bjørn Rørslett's site. Bjørn is an incredibly talented professional photographer, and pioneered most of what I do as part of this hobby. None of this would exist without the vital information he posted on his site in terms of cameras, affordable lenses, and filters. In addition, because he has worked with the technology for so long, he has experience with and examples of things like the false colour multispectral film that Kodak used to produce.
